PERIOCAM™ HD Equine Dental Endoscopy

Rutledge Medical PERIOCAM™

Equine Dentistry In 1080p HD

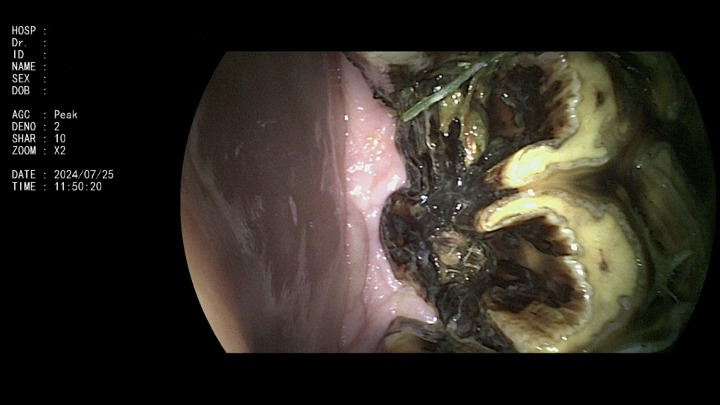

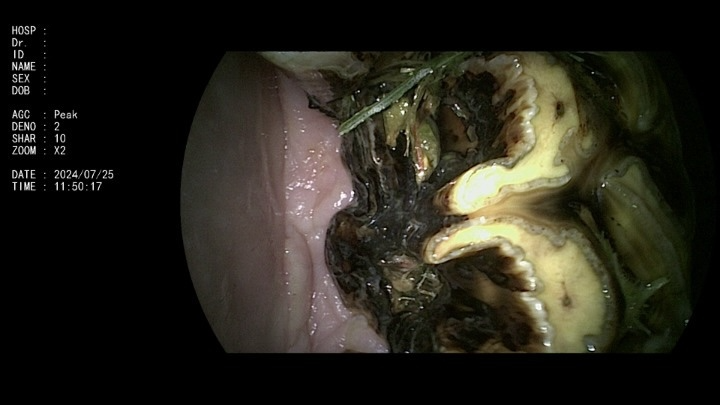

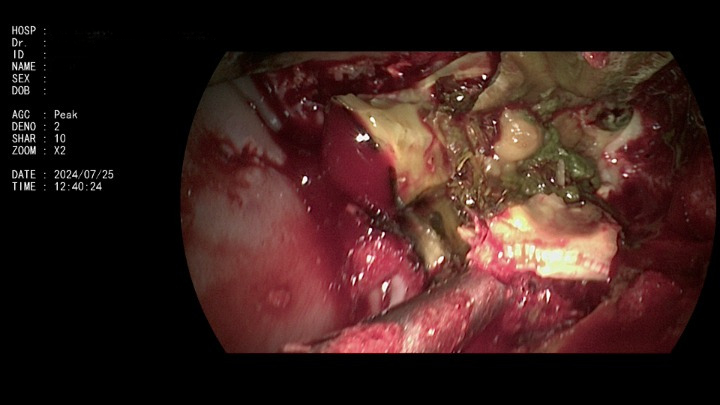

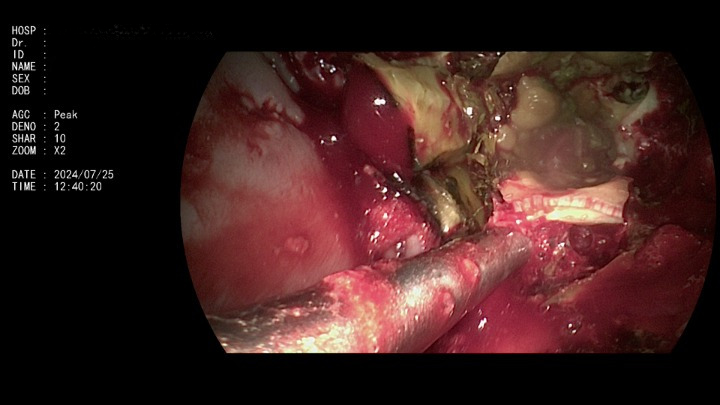

Our 3-chip Full High-Definition Camera Combined With Our Portable Periocam Light Source and Processor Gives You An Unobstructed View Of The Entire Equine Periodontal Cavity. Increase Patient Owner Treatment Compliance By Showing Them The Issues First Hand. Video and Image Capture Is Built-In for Saving To The Patient Records. Scope Is Made Of Surgical Stainless Steel And Is Specially Tuned At 70° To Give You The Widest Viewing Field Possible.

Downloadable Resources

PERIOCAM™ Brochure (PDF) – COMING SOON

PERIOCAM™ Owners Manual (PDF) – COMING SOON

System Components

PERIOCAM™ ED-VP1

A Specialized Version Of Our Popular AURORA XP Portable Video Processor. It Has Many Of The Same Features Like Video/Image Capture Is Built-In. With That Crystal Clear 1080p FHD Image.

PERIOCAM™ SC-1

A Three Chip, 1.5 Million Pixel C-Mount Camera from our XP Series. Repurposed with a 22mm Lens With Manual Focus For Equine Dentistry. Video/Image Capture Can Be Assigned To The buttons.

PERIOCAM™ 70 Degree Endoscope

An Extra Long 10mm Endoscope made from surgical stainless steel. the 70° angle of view allows for perfect high-definition imgaes of Dental anatomy.

XP-PEL Pelican Mobile Case

High-Impact Plastic FAA approved travel case. With wheels, pull handle, custom cut foam and available in three colors, Black, Olive and Sand.

Clinic Trolley

A perfect and Lightweight Trolley That Fits Your PERIOCAM™ Processor Like A Glove. Small Footprint Means It Stays Out Of The Way When It’s Not Being Used.

Illuminated Cable

Great Optics For Patient Owner Clients. The Cable Is 3M in Length And 6mm In Diameter. Made Of Fine Microglass Fibers.

Compatibility

Use Other AURORA Hardware With The PERIOCAM™

If You Own An AURORA XP XP-1P, You Don’t Need New Hardware To Have a PERIOCAM™. There’s A Video Access Plug on the front of the processor For The SC-1 HD Camera Head And Voila! You’ll Have 1080p Full High-Definition Video On The Attached Screen.
