Specifications

Flexible endoscope with measurement markings
buy equine gastroscope, equine gastroscope for sale, purchase equine endoscope, AURORA XP gastroscope price, veterinary gastroscope purchase, equine endoscopy equipment, buy equine 3.5m scope, EGUS diagnostic equipment, equine gastroscopy system price, best equine gastroscope, equine endoscopy supplier, veterinary endoscopy purchase, HD equine gastroscope for sale, equine scope pricing, equine GI endoscope buy, equine hospital endoscopy equipment, full HD equine gastroscope purchase, equine clinic gastroscopy system, vetmed equine gastroscope supplier
Scope Model Outer Diameter Instrument Channel Working Length Angulaton
XP-VS3500 12.9mm 3.4mm 3500mm Up/Down: 160 | Left/Right: 180

Graduated Stiffness Has Changed The Game

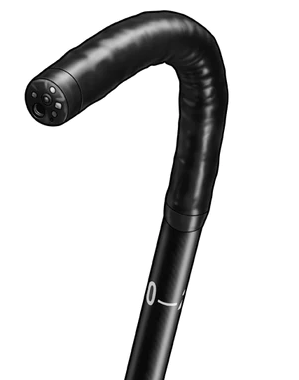

Black endoscope insertion tube with graduated stiffness zones

More than length. Control where it matters.

Reaching the equine stomach is only the beginning. Navigating its curvature and positioning the scope at the pylorus requires more than a long insertion tube—it requires support. When a flexible shaft bows or loops rather than advances, feeding in more scope does not necessarily move the tip closer to its destination. Graduated Stiffness™ is engineered to address that challenge.

The AURORA XP-VS3500 puts additional support where it matters most.

Across the final 1.5 meters of its 3.5-meter insertion tube, reinforced internal construction progressively increases shaft stiffness as it approaches the bending section. Rather than making the entire gastroscope rigid, this design creates a transition from a more flexible shaft to a firmer, more supportive distal region.

The insertion tube provides support. The bending section provides direction.

These are complementary functions, not competing ones. The reinforced insertion tube helps maintain the scope’s shape and direction, while the articulating bending section allows the veterinarian to steer the tip toward the area being examined.

That distinction becomes particularly important when navigating toward the pylorus. A shaft that yields too readily can absorb forward movement through unwanted flexion instead of translating it into useful advancement. Graduated Stiffness™ provides additional support to resist that tendency, helping the scope maintain its intended path and making pyloric positioning more controlled.

It is not about pushing harder. It is about giving the veterinarian a scope that better supports the movement they intend.

Built to support a more complete examination.

A gastroscope’s working length determines how far it can potentially reach. Its handling characteristics influence how effectively that length can be used.

By combining a 3.5-meter working length with progressively reinforced distal construction, the XP-VS3500 is designed to make challenging areas of the equine stomach easier to access and examine. The objective is not simply to enter the stomach, but to support deliberate navigation, stable positioning, and thorough evaluation—including the antrum and pylorus.

Why it changes the experience.

Graduated Stiffness™ addresses a practical challenge that additional length or sharper imaging alone cannot solve: maintaining control over a long, flexible instrument inside a large anatomical space.

The result is a design that brings reach, support, and steering together—helping veterinarians navigate with greater confidence while preserving the distal articulation needed for examination.

Less time fighting the scope. More focus on the examination.

Rutledge logo with pink shield and white cross

Welcomes

Iowa State University College of Veterinary Medicine logo

Proud User of the

AURORA XP logo in bold white lettering on black

FHD Endoscopy System

System Components

buy equine gastroscope, equine gastroscope for sale, purchase equine endoscope, AURORA XP gastroscope price, veterinary gastroscope purchase, equine endoscopy equipment, buy equine 3.5m scope, EGUS diagnostic equipment, equine gastroscopy system price, best equine gastroscope, equine endoscopy supplier, veterinary endoscopy purchase, HD equine gastroscope for sale, equine scope pricing, equine GI endoscope buy, equine hospital endoscopy equipment, full HD equine gastroscope purchase, equine clinic gastroscopy system, vetmed equine gastroscope supplier
AURORA XP-2P Field Processor

The Clinical Tower Made For The Field. There’s a 40-Watt LED Light source And Patient Information Annotated On The Screen. Compatible With All AURORA XP Series Endoscopes. Video And Image Capture Built-In.

Forward Water Jet
FHD Equine Gastroscope

The Finest Engineered Video Equine Gastroscope Ever Made. At either 3.3M or 3.5M long at 12.9mm in diameter with a 3.4mm instrument channel. It’s Graduated Stiffness Provides Ample Structure And the dedicated Forward Water Jet channel, Keeps The Field of view Clear.

Two medical devices with control panels for operational settings
AURORA XP-2

The Clinical System Offering All The Features Offered In Competitors’ Systems. Including, Annotated Patient Data, Light And Pump Controls, plus a Dual 50-watt LED. No Laptop Needed. With Video/Image Capture Included.

Digital peristaltic pump with LCD display
EI-500 EndoIrrigator Pump

Our EndoIrrigator provides superb flow rates through dedicated forward water jet channels of up to 500mL/minute. Foot pedal activated, the irrigation you need is on-demand. And Now It Comes With A Bottle Stand, To Keep Your Fluid In Reach and Upright.

Close-up of Cuttledge XP-V51500 device connector
AURORA XP Biopsy Port Adapter

A truly game changing invention! No more zip ties, simply replace the biopsy port seal on the scope and connect your suction tubing for insufflation and suction direct through the biopsy channel for an easy and efficient procedure each and every time. Patent pending.

buy equine gastroscope, equine gastroscope for sale, purchase equine endoscope, AURORA XP gastroscope price, veterinary gastroscope purchase, equine endoscopy equipment, buy equine 3.5m scope, EGUS diagnostic equipment, equine gastroscopy system price, best equine gastroscope, equine endoscopy supplier, veterinary endoscopy purchase, HD equine gastroscope for sale, equine scope pricing, equine GI endoscope buy, equine hospital endoscopy equipment, full HD equine gastroscope purchase, equine clinic gastroscopy system, vetmed equine gastroscope supplier
AURORA XP Rapid Insufflation

Completing your case with speed and efficiency is key on a busy gastroscopy day. This pump allows you to gently inflate the equine stomach, directly through your biopsy port using a pump that fits in your pocket. Inflate the stomach in seconds, even if its filled with feed.

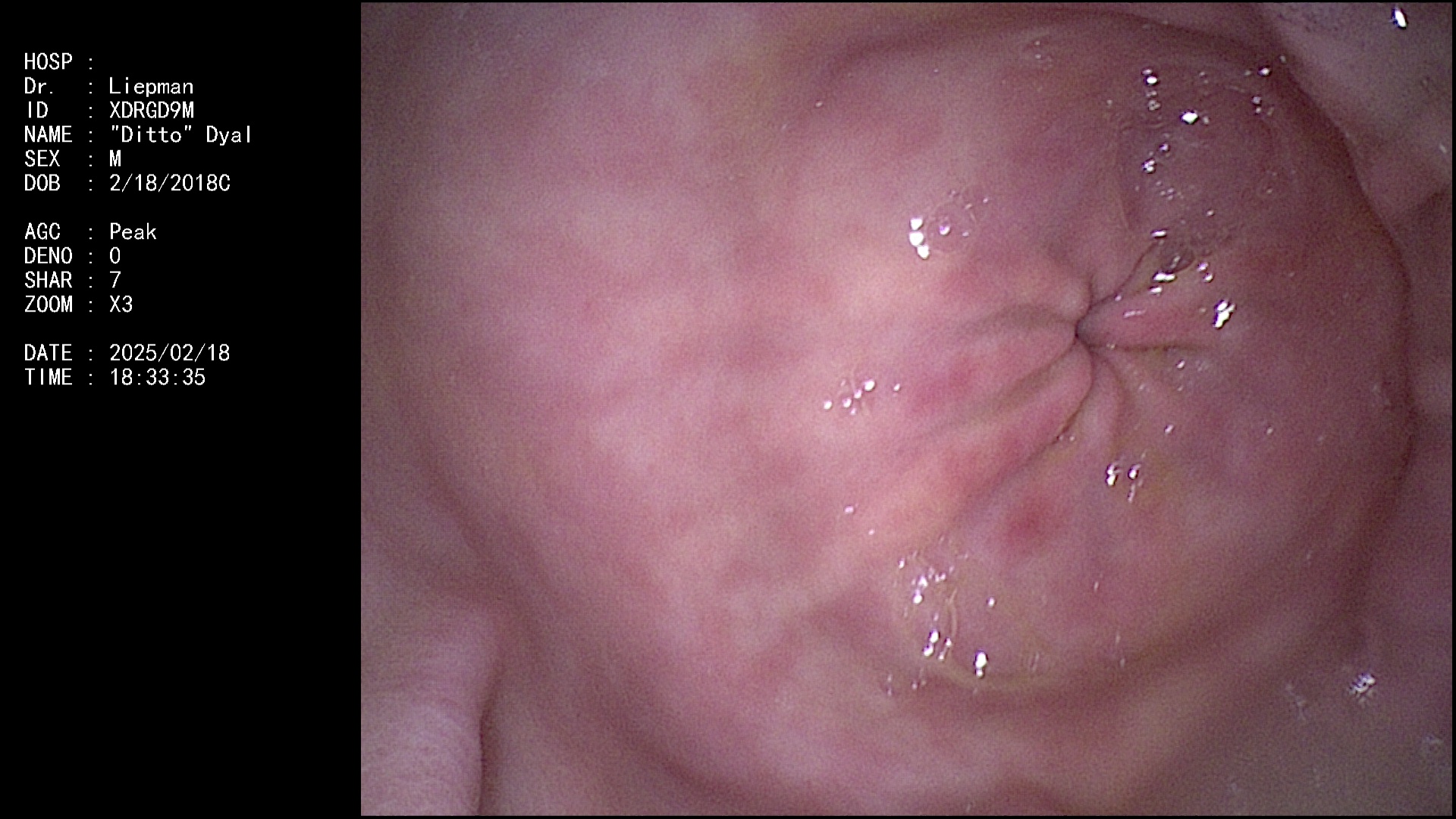

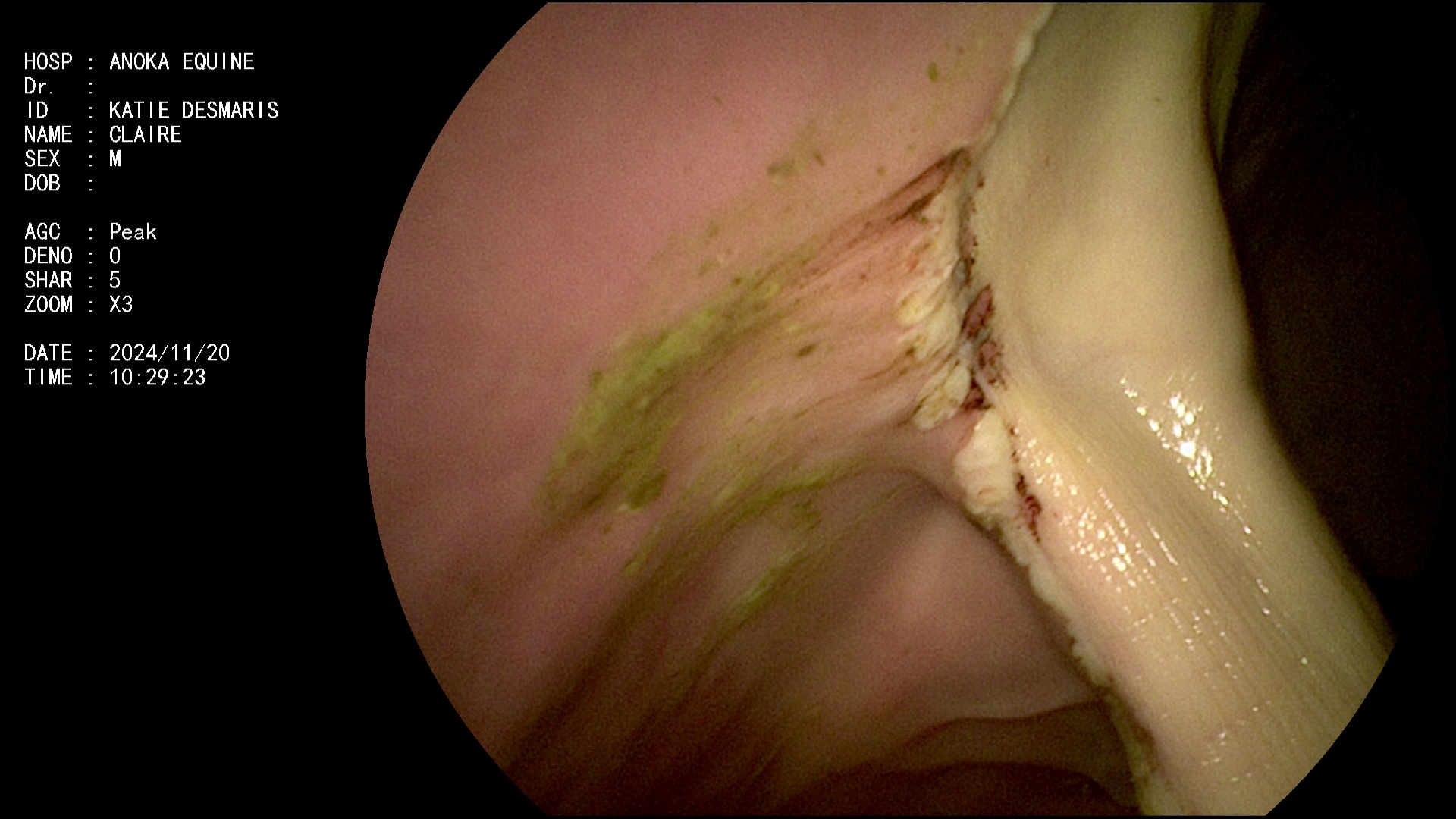

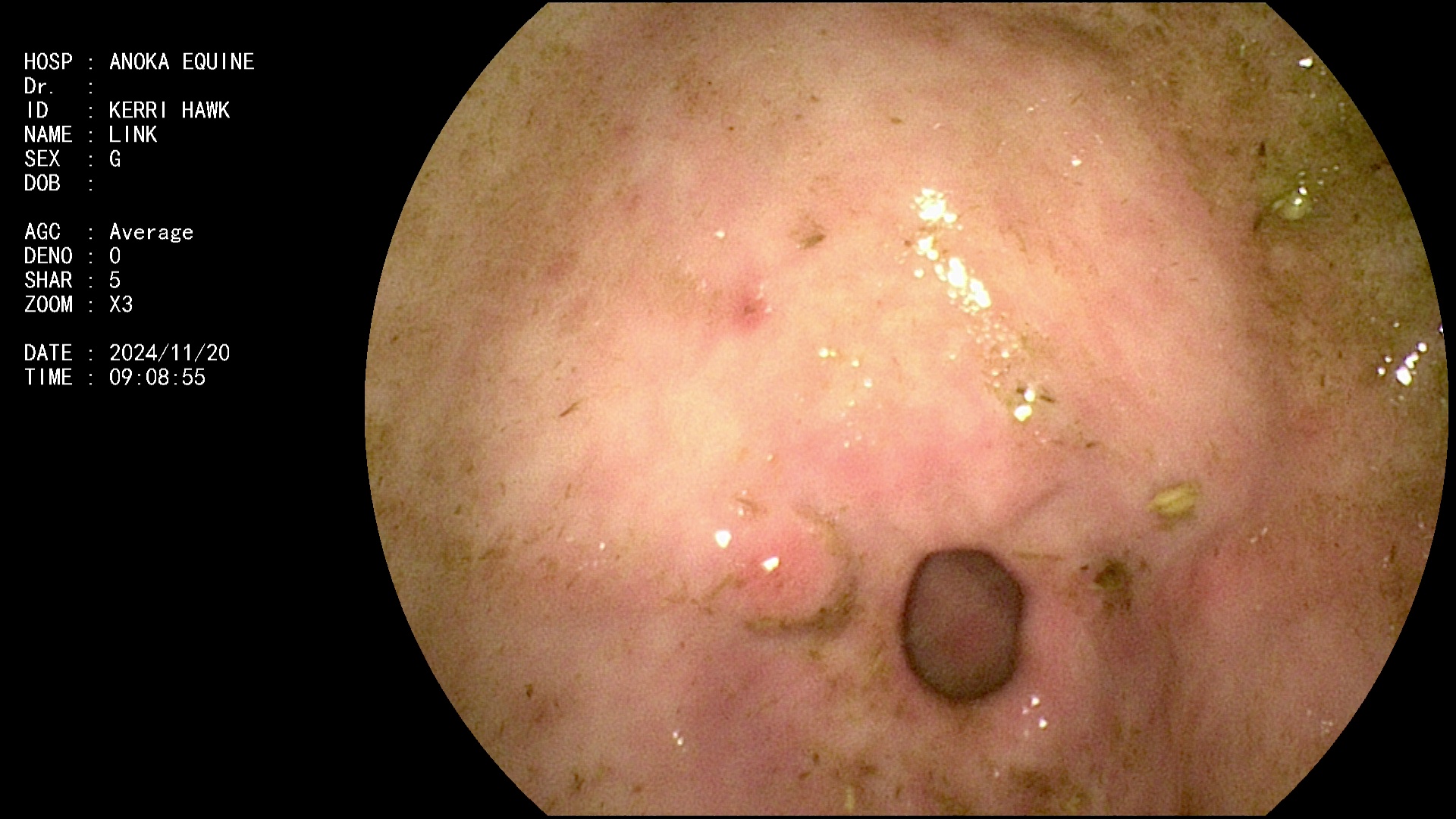

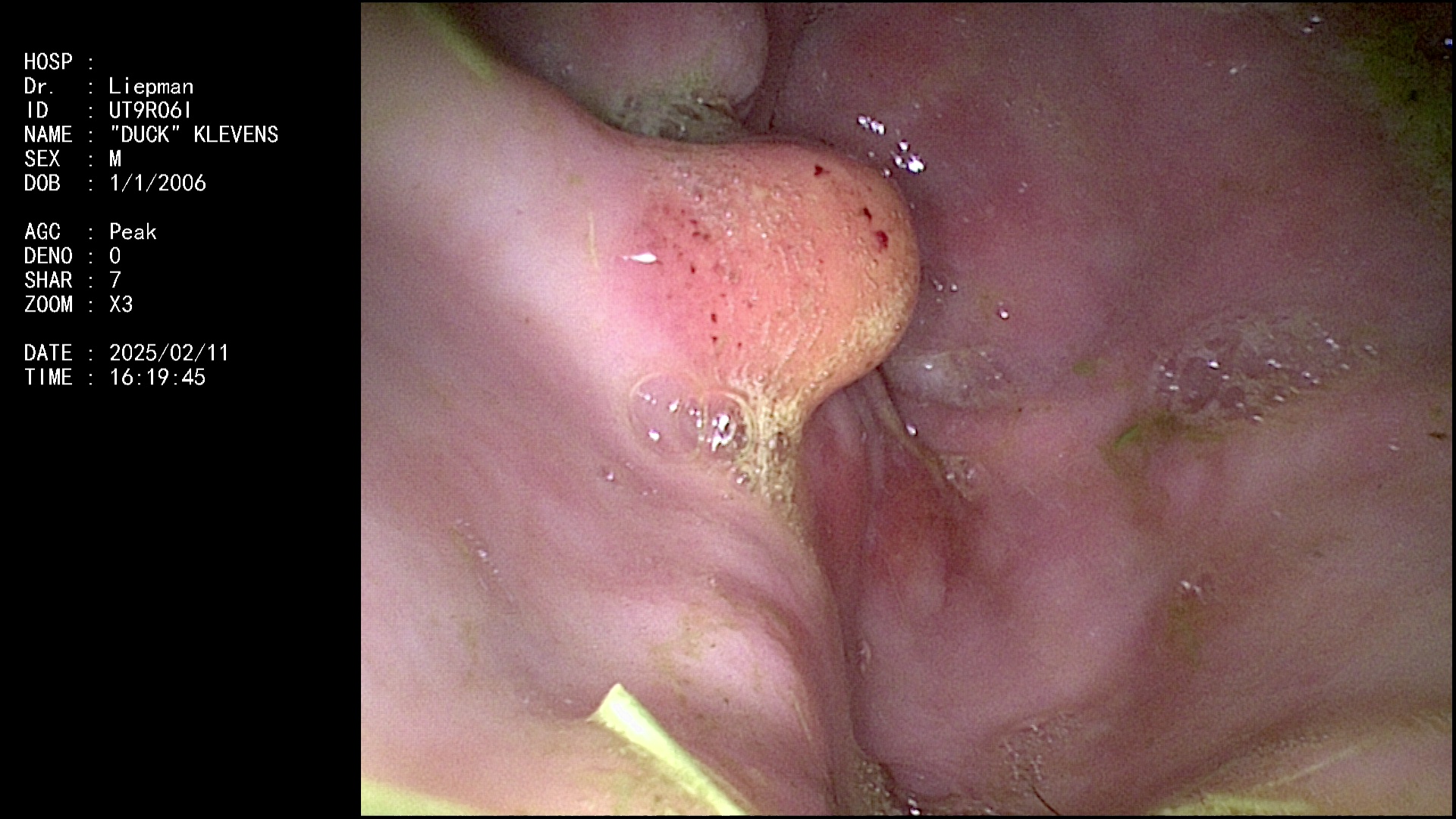

Consistent High-Definition Images, Every Time.

Rutledge logo with pink shield and white cross

Welcomes

University of Georgia Veterinary Medicine logo
AURORA XP logo in bold white lettering on black

Proud User

Ready To Buy?
